Efficiency Redefined: Huaheng's Telescopic Forklifts Lead with Superior Load Capacity and Precision Handling Efficiency

Product Description

The HFTA42 single-motor, single-deep forks are used for automated warehouse storage of light goods such as crates. The fork body is delicate and small, usually used as a single fork, but also can be used as a double fork or multi-fork joint use.

Main components and functions:

1. Combination top fork: It is made of one top plate and two side plates spliced together, and can be customized with different widths;
2. High-strength needle roller bearings: customized according to the requirements of telescopic fork industry, with high precision, low resistance, strong radial bearing capacity, high hardness and self-aligning function, wear-resistant and impact-resistant;
3. Analyzed chain: anti-stretch, high strength, high breaking load, fatigue resistance;
4. One-piece center fork: made of high-quality steel, machining center one-piece molding, with high precision;
5. Mechanical Limit Protection: The telescopic fork is equipped with a mechanical limit inside to prevent it from being dislodged over the stroke;
6. Drive: AC servo motor with planetary reducer;
7. No-load maximum speed: 0-50m/min
8. Maximum speed at full load: 0-30m/min
9. No-load acceleration: 1m/S²
10. Full load acceleration: 2m/S²

FH Fork thickness (mm)	LS Cargo length (mm)	L Length of fork(mm)	S1 Maximum stroke (safety stroke 30mm)	TH Total fork height (mm)	HF Mounting height(mm)	FW Fork width (mm)	Q Load (KG)	Load Disturbance(mm) ± 10%	No-load disturbance(mm) ± 10%
42	600	700	750+30	228	73	183-600	120	7	≤4
		750	860+30				120	9
	650	700	810+30				120	8
		750	860+30				120	10
		800	850+30				120	8
			910+30				120	10
	700	700	750+30				120	11
		750	860+30				120	9
		800	850+30				120	9
			910+30				120	11
	750	750	850+30				120	9	≤5
			860+30				120	10
		800	850+30				120	10
			910+30				120	12
		900	950+30				120	10
			1010+30				120	13
	800	800	910+30				120	12
		900	950+30				120	12
			1010+30				120	14

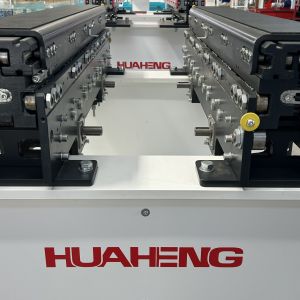

Detailed Photos

Company Profile

Changsha Huaheng Robotics System Co., Ltd. is a global engineering company under Huaheng Group, which is committed to the development, design, manufacture and service of intelligent logistics and warehousing and intelligent manufacturing flexible automated production line, and a high and new technology enterprise that provides customers with integrated solutions of intelligent logistics and intelligent manufacturing.

The company has excellent design development and engineering technology team engaged in factory automation logistics industry for many years, after continuous independent research and development and innovation, the company has owned a number of patented technology certificates, the certificate covers intelligent manufacturing production line, intelligent three-dimensional warehouse, software control and so on. In the construction machinery industry for heavy industry enterprises to provide the world's leading outrigger, frame, boom, large-tonnage frame, large-tonnage boom five intelligent robot welding production line; for the world's advanced heavy industry enterprises to provide intelligent logistics large three-dimensional warehouse, marking the heavy industry oversized parts of the intelligent storage has been solved; in the pharmaceutical industry for the pharmaceutical factories to establish a multi-layer intelligent logistics sorting, picking project; in the real estate and construction industry The industry was the first to develop and implement the construction of four climbing frame intelligent robot welding production line to become the industry benchmark.

Telescopic forks are the actuators of the stacker cranes for accessing goods. The telescopic forks can be extended and retracted horizontally in order to feed (or remove) goods to and from the two side compartments. Forks generally use three-stage (or four-stage) linear differential telescopic forks, which are composed of cam bearings, slider guide units, power gear units, fork bodies, etc., and are driven by rack and pinion or chain.

Changsha Huaheng Robot System Co., Ltd.:

A Leader in Intelligent Logistics and Manufacturing Core Equipment

Established in 2011, Changsha Huaheng Robot System Co., Ltd. stands as a key intelligent equipment manufacturing entity within the Huaheng Group. As a national high-tech enterprise, the company integrates R&D, design, manufacturing, and service, with a deep focus on the development and application of intelligent logistics warehouse systems, intelligent manufacturing production lines, and core intelligent logistics products.

Core Business & Products

We provide comprehensive automation solutions and high-performance core products:

• Intelligent Logistics Systems: High-precision stacker cranes, integrated automated storage and retrieval systems (ASRS)
• Intelligent Manufacturing Units: Robotic automation production lines and flexible manufacturing systems
• Core Logistics Equipment: A full range of intelligent telescopic forks and customized solutions

Technical Strength & Innovation Foundation

The company is located in the Liuyang High-tech Industrial Development Zone in Hunan, operating from a modern industrial base spanning approximately 60,000 square meters, which includes one office center and three specialized manufacturing workshops. We are supported by a seasoned technical team of nearly 200 professionals with extensive experience in factory automation and the logistics sector.

Our innovation capability has gained national recognition, with the company accumulating numerous patent and technical certificates covering key areas such as intelligent telescopic forks, stacker cranes, ASRS, and software control systems.

Flagship Product: Intelligent Telescopic Forks

Our self-developed telescopic forks have become an industry benchmark, successfully breaking through foreign technological monopolies. Their exceptional performance has been widely validated in the market:

• Broad Application: Deeply serving renowned enterprises across dozens of industries including automotive, pharmaceuticals, heavy industry, military, 3C electronics, and new energy.

• Complete Range: Offering a full series of models including single-motor single-unit, single-motor dual-unit, dual-motor dual-unit forks, and telescopic clamping forks.

• Technological Breakthrough: Particularly in the field of high-tonnage dual-unit forks, we have successfully overcome industry challenges related to instability and high deflection in domestic products, earning consistent praise in heavy-duty applications such as engineering machinery, port machinery, and military industry.
