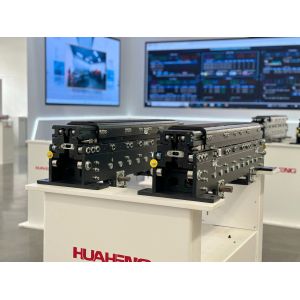

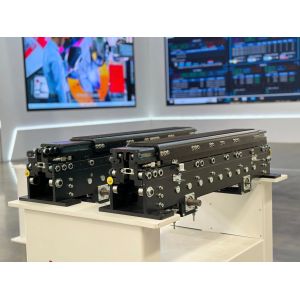

    1300 X 1400 X 1500mm Pallet Telescopic Fork Double Motor Pallet Type Fork 30m/Min

    Ask Lasest Price
    Certification : ISO, CE
    Price : 20000
    Brand Name : HUAHENG
    Model Number : HFTAC210x90x205
    Delivery Time : 30 workdays
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    • Product Details
    • Company Profile

    1300 X 1400 X 1500mm Pallet Telescopic Fork Double Motor Pallet Type Fork 30m/Min

    Product Description

    Hftc210X90X205-1300*1400*1500 Pallet Type Double Motor Double Deep Position Fork

    Technical specialties

    HFTC210x90x205 series heavy duty double motor double reach forks with 90/205mm reach, this series of forks is used for automated three-dimensional warehouse storage of pallets with a load capacity of up to 2000kg.

    Main components and functions:
    1. One-piece upper fork: made of high-strength plate with integral bending processing, simple and beautiful, high strength;
    2. High-strength needle roller bearings: customized according to the requirements of telescopic fork industry, with high precision, low resistance, strong radial bearing capacity, high hardness and self-aligning function, wear-resistant and impact-resistant;
    3. Polymer material guide block: ultra-high polymer polyethylene, high wear-resistant, impact-resistant, with self-lubrication;
    4. Analyzed chain: anti-stretch, high strength, high breaking load, fatigue resistance;
    5. One-piece center fork: made of high-quality steel, machining center one-piece molding, with high precision;
    6. Torque limiter protection: the driving part is equipped with a torque limiter, disc spring friction plate structure, overload slipping in time to disconnect the transmission;
    7. Mechanical Limit Protection: The telescopic fork is equipped with a mechanical limit inside to prevent it from being dislodged over the stroke;
    8. Drive: Variable frequency motor, AC servo motor with planetary reducer can be used to provide drive;
    9. No-load maximum speed: 0-35m/min
    10. Maximum speed under full load: 0-30m/min
    11. No-load acceleration: 0.5m/S2
    12. Full load acceleration: 0.5m/S2
    Hfta210X90X205-2h-Dm-2z 1300*1400*1500 Pallet Type Double Motor Double Deep Position ForkHfta210X90X205-2h-Dm-2z 1300*1400*1500 Pallet Type Double Motor Double Deep Position Fork

    FH Fork thickness (mm)
    LS Cargo Length (mm)
    L Fork Length (mm)

    S1/S2 single/double deep stroke (safety stroke 30mm)
    TH Total fork height (mm)
    HC
    Mounting height(mm)

    TWF
    Fork width
    (mm)
    FW
    Fork width (mm)

    Q Load (KG)    		Single deep Load Disturbance(mm)
    ±
    10%    		Single deep No-Load Disturbance(mm)
    ±
    10%    		Dual deep Load Disturbance(mm)
    ±
    10%    		Double deep No-Load Disturbance(mm)
    ±
    10%





    90/205    		110012501350+30/2600+30




    600




    316




    >716




    186    		200016

    ≤4    		41

    ≤6
    120013001400+30/2700+3020001642
    125013501450+30/2800+3020001745
    130014001500+30/2900+3020001747
    135014501550+30/3000+3018001748
    140015001600+30/3100+30155016

    ≤5    		50

    ≤8
    145015501650+30/3200+3013501751
    150016001700+30/3300+3012001651
    160017001800+30/3500+309001653
    Hfta210X90X205-2h-Dm-2z 1300*1400*1500 Pallet Type Double Motor Double Deep Position Fork
    Our Advantages

    Hfta210X90X205-2h-Dm-2z 1300*1400*1500 Pallet Type Double Motor Double Deep Position ForkHfta210X90X205-2h-Dm-2z 1300*1400*1500 Pallet Type Double Motor Double Deep Position Fork
    About us

    Changsha Huaheng Robotics System Co., Ltd. is a global engineering company under Huaheng Group, which is committed to the development, design, manufacture and service of intelligent logistics and warehousing and intelligent manufacturing flexible automated production line, and a high and new technology enterprise that provides customers with integrated solutions of intelligent logistics and intelligent manufacturing.

    Hfta210X90X205-2h-Dm-2z 1300*1400*1500 Pallet Type Double Motor Double Deep Position Fork
    The company has excellent design development and engineering technology team engaged in factory automation logistics industry for many years, after continuous independent research and development and innovation, the company has owned a number of patented technology certificates, the certificate covers intelligent manufacturing production line, intelligent three-dimensional warehouse, software control and so on. In the construction machinery industry for heavy industry enterprises to provide the world's leading outrigger, frame, boom, large-tonnage frame, large-tonnage boom five intelligent robot welding production line; for the world's advanced heavy industry enterprises to provide intelligent logistics large three-dimensional warehouse, marking the heavy industry oversized parts of the intelligent storage has been solved; in the pharmaceutical industry for the pharmaceutical factories to establish a multi-layer intelligent logistics sorting, picking project; in the real estate and construction industry The industry was the first to develop and implement the construction of four climbing frame intelligent robot welding production line to become the industry benchmark.
    Hfta210X90X205-2h-Dm-2z 1300*1400*1500 Pallet Type Double Motor Double Deep Position Fork

    Telescopic forks are the actuators of the stacker cranes for accessing goods. The telescopic forks can be extended and retracted horizontally in order to feed (or remove) goods to and from the two side compartments. Forks generally use three-stage (or four-stage) linear differential telescopic forks, which are composed of cam bearings, slider guide units, power gear units, fork bodies, etc., and are driven by rack and pinion or chain.

    Hfta210X90X205-2h-Dm-2z 1300*1400*1500 Pallet Type Double Motor Double Deep Position ForkHfta210X90X205-2h-Dm-2z 1300*1400*1500 Pallet Type Double Motor Double Deep Position ForkHfta210X90X205-2h-Dm-2z 1300*1400*1500 Pallet Type Double Motor Double Deep Position ForkHfta210X90X205-2h-Dm-2z 1300*1400*1500 Pallet Type Double Motor Double Deep Position Fork
