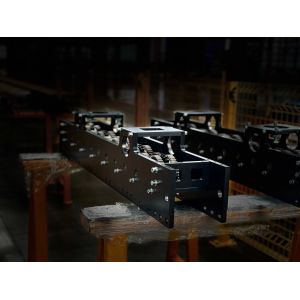

Hftb180X70*1300*1300*1200 Pallet Telescopic Fork Single Motor Single Deep Position

Product Description

The HFTB180x70 single-deep fork is a slightly more powerful fork than the HFTA1750x65. The forks are mostly used for storage of standard pallets <1500 kg in automated warehouses.

Main components and functions:

1. One-piece upper fork: made of high-strength plate with integral bending processing, simple and beautiful, high strength;
2. High-strength needle roller bearings: customized according to the requirements of telescopic fork industry, with high precision, low resistance, strong radial bearing capacity, high hardness and self-aligning function, wear-resistant and impact-resistant;
3. Polymer material guide block: ultra-high polymer polyethylene, high wear-resistant, impact-resistant, with self-lubrication;
4. Analyzed chain: anti-stretch, high strength, high breaking load, fatigue resistance;
5. One-piece center fork: made of high-quality steel, machining center one-piece molding, with high precision;
6. Torque limiter protection: the driving part is equipped with a torque limiter, disc spring friction plate structure, overload slipping in time to disconnect the transmission;
7. Mechanical Limit Protection: The telescopic fork is equipped with a mechanical limit inside to prevent it from being dislodged over the stroke;
8. Drive: Variable frequency motor, AC servo motor with planetary reducer can be used to provide drive;
9. No-load maximum speed: 0-40m/min
10. Maximum speed at full load: 0-30m/min
11. No-load acceleration: 0.5m/S²
12. Full load acceleration: 1m/S²

FH Thickness of fork body(mm)	LS Cargo length (mm)	L Length of fork(mm)	S1 Maximum stroke (safety stroke 30mm)	TH Total fork height (mm)	HF Mounting height(mm)	TWF Fork Width (mm)	FW Fork width (mm)	Q Load (KG)	Load Disturbance(mm) ± 10%	No-load Disturbance(mm) ± 10%
70	1100	1200	1350+30	515	152	≥ 580mm	180	1500	18	≤4
	1200	1200	1300+30					1350	16
		1200	1300+30					1500	23
		1200	1350+30					1350	16
		1200	1350+30					1500	23
		1300	1400+30					1350	14
		1300	1450+30					1200	16
	1300	1300	1400+30					1350	16
		1300	1450+30					1200	20
		1300	1450+30					1350	23
	1400	1400	1500+30					1200	20
		1400	1550+30					1000	21
	1500	1500	1550+30					900	18
	1600	1600	1650+30					700	20
	1700	1700	1750+30					650	22	≤5
	1800	1800	1850+30					550	21
	2000	2000	2150+30					350	21

About us

Changsha Huaheng Robotics System Co., Ltd. is a global engineering company under Huaheng Group, which is committed to the development, design, manufacture and service of intelligent logistics and warehousing and intelligent manufacturing flexible automated production line, and a high and new technology enterprise that provides customers with integrated solutions of intelligent logistics and intelligent manufacturing.

The company has excellent design development and engineering technology team engaged in factory automation logistics industry for many years, after continuous independent research and development and innovation, the company has owned a number of patented technology certificates, the certificate covers intelligent manufacturing production line, intelligent three-dimensional warehouse, software control and so on. In the construction machinery industry for heavy industry enterprises to provide the world's leading outrigger, frame, boom, large-tonnage frame, large-tonnage boom five intelligent robot welding production line; for the world's advanced heavy industry enterprises to provide intelligent logistics large three-dimensional warehouse, marking the heavy industry oversized parts of the intelligent storage has been solved; in the pharmaceutical industry for the pharmaceutical factories to establish a multi-layer intelligent logistics sorting, picking project; in the real estate and construction industry The industry was the first to develop and implement the construction of four climbing frame intelligent robot welding production line to become the industry benchmark.

Telescopic forks are the actuators of the stacker cranes for accessing goods. The telescopic forks can be extended and retracted horizontally in order to feed (or remove) goods to and from the two side compartments. Forks generally use three-stage (or four-stage) linear differential telescopic forks, which are composed of cam bearings, slider guide units, power gear units, fork bodies, etc., and are driven by rack and pinion or chain.
